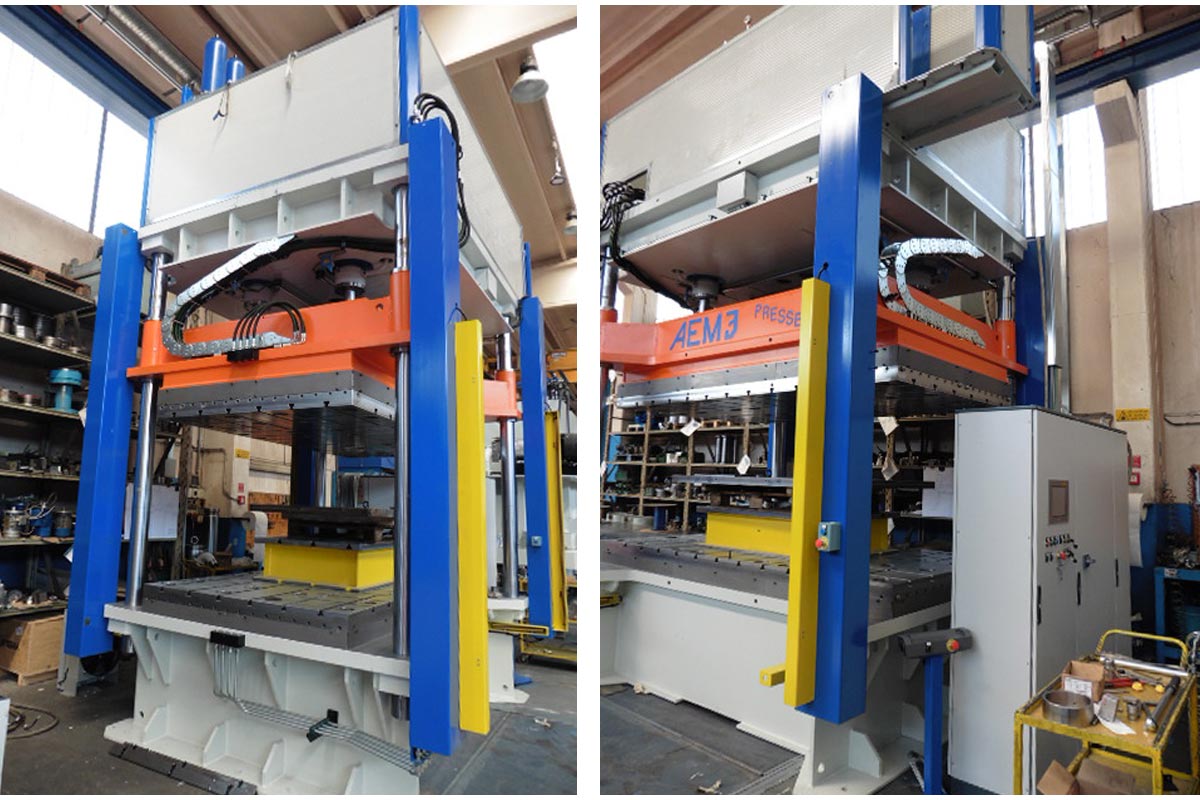

Press complete with heating plates Lower floor - machining / slots for T nuts on customer request Movable table - machining / slots for T nuts at the customer's request Installed power 55 KW Thrust force of main cylinder 100 Tons Operator side horizontal light 2700 mm Lateral horizontal light 2000 mm Vertical light 1400 mm Main cylinder stroke 1200 mm Height of the worktop from the ground 1100 mm Lower worktop size 3200x1600 mm Mobile worktop size 3200x1600 mm Fast descent speed 350 mm / sec Working speed 3.5 mm / sec Fast ascent speed 350 mm / sec
Code 18025
