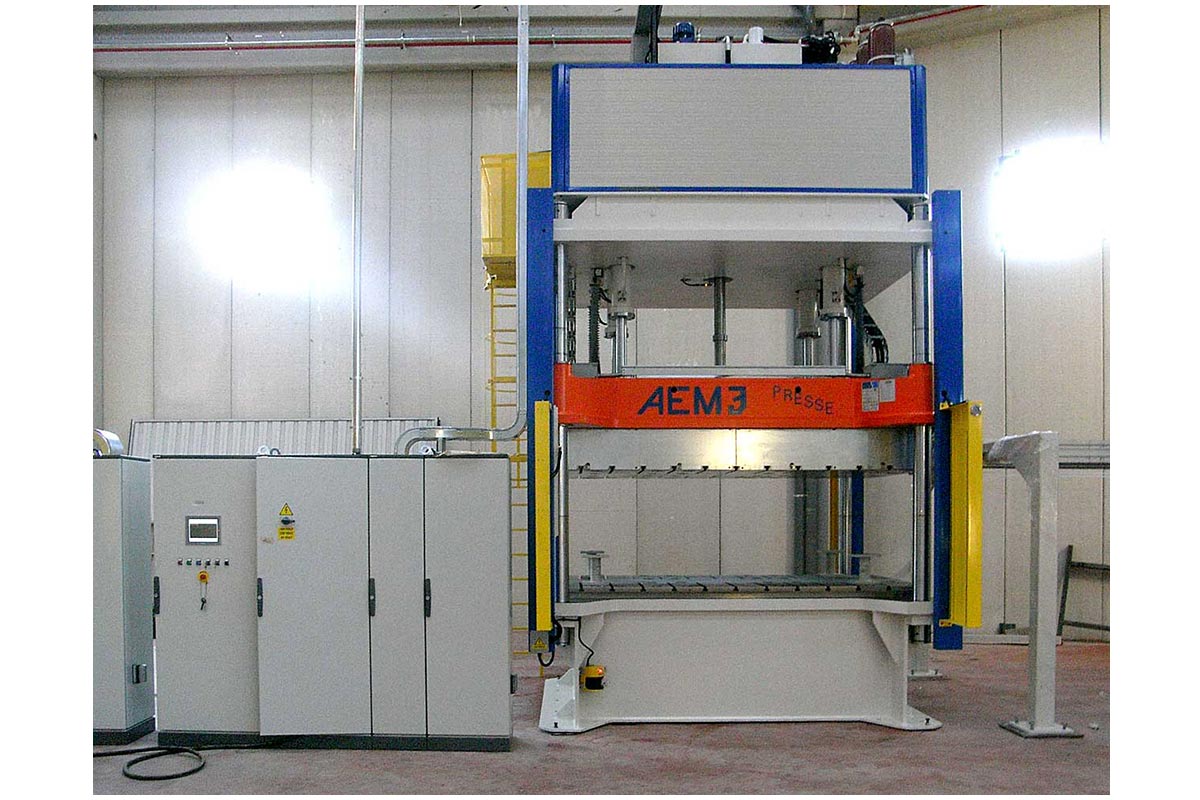

- 4 COLONNE HYDRAULIC PRESS with 100 tons with 4-CYLINDER HYDRAULIC SYSTEM of SYNCHRONISM.
- n ° 4 DOUBLE EFFECT HYDRAULIC CYLINDERS of 25 tons cad.
- DOWN / DOWN SPEED 300 mm / sec.
- WORKING SPEED 0.1-5 mm / sec.
- MAX WORKING PRESSURE 200 bar.
- CYLINDER STROKE 1200 mm.
- LIGHT between the OPENED FLOORS 1400 mm.
- USEFUL DIMENSIONS of the WORKTOP (HEATED up to 210 ° in the UPPER PART) 3220 X 1600 mm.
- DISTANCE between the 2700 X 2,000 mm COLUMNS.
- SYSTEM with ENERGY SAVING SYSTEM that ALLOWS SHORT TERM TERMINATION TIMES
Code 11013
